Designline Drop In Cold Well Self Service 1525mm

Add all your products to your quote and we will send you a tailored quote. Alternatively call us on 0151 601 1818 or email us to discuss your next project.

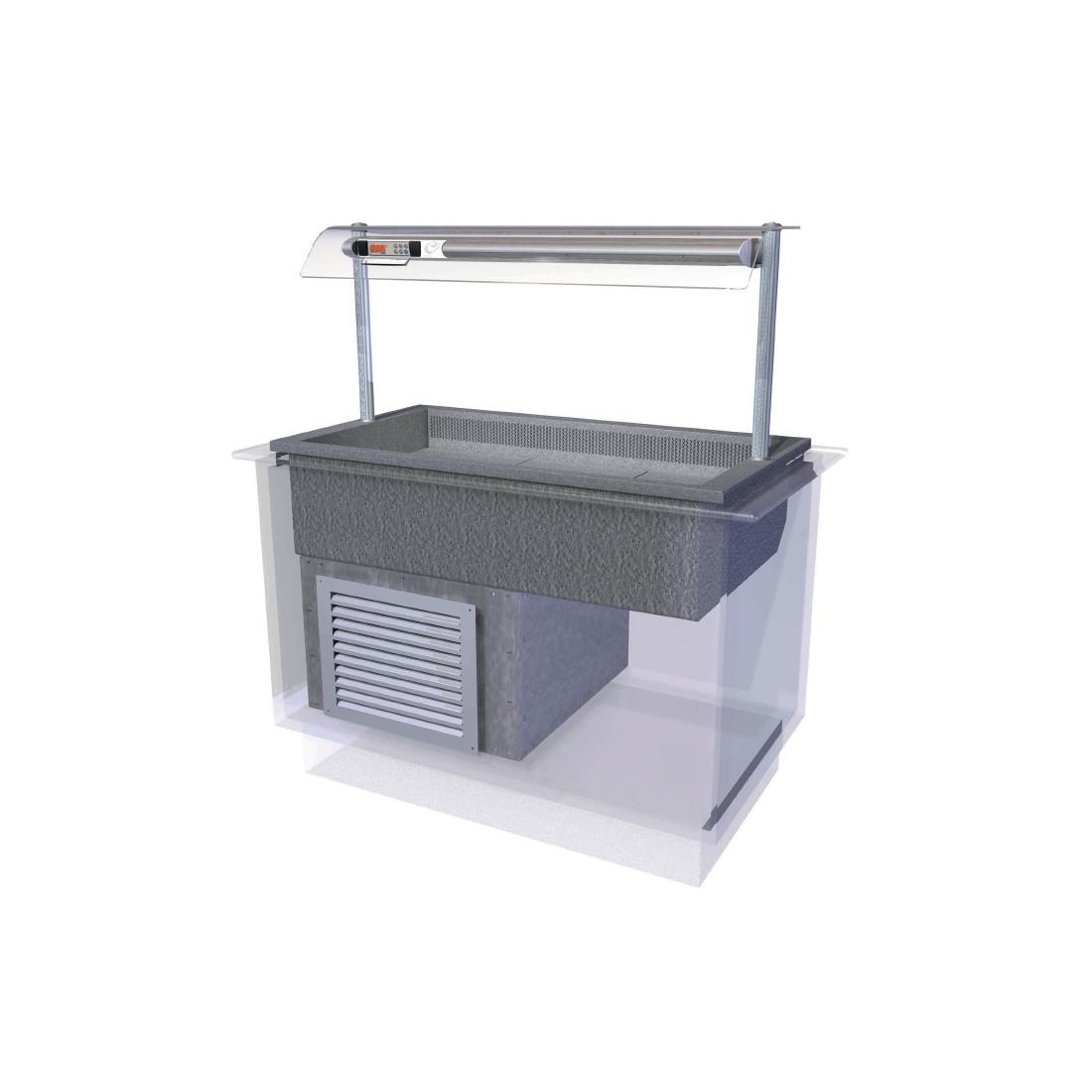

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline self help cold well drop in display. This energy efficient 4/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled island well make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.

Enquire about Designline Drop In Cold Well Self Service 1525mm
